Core Selection Principles: Prioritize regulatory compliance, ensure compatibility with pharmaceutical agents, match specific operating conditions, and balance costs. Avoid the following three common pitfalls:
1. "Substituting Inferior for Superior" (using standard or food-grade materials as substitutes for pharmaceutical-grade ones);
2. "Blindly Opting for High-End" (selecting FFKM materials when they are not required, thereby increasing costs unnecessarily);
3. "Material-Agent Incompatibility" (e.g., using EPDM in applications involving organic solvents).
Specific selection steps and recommendations are outlined below:
(I) Step 1: Define Core Operating Parameters (The Fundamental Prerequisite)
- Determine Pressure Parameters: Clearly define the rotary joint's operating pressure (standard or high-pressure) and the magnitude of pressure fluctuations. For high-pressure conditions (≥ 10 MPa), prioritize FFKM or PTFE materials due to their superior extrusion resistance; for standard pressure conditions (0.5-10 MPa), FKM or EPDM materials are sufficient. Additionally, leakage rate requirements must be considered; for high-precision applications (such as the transfer of sterile injectables), prioritize FFKM or PTFE to ensure a leakage rate of < 1 ppm.
- Determine Temperature Parameters: Clearly define the operating temperature, whether high-temperature sterilization (at 121°C or 135°C) is required, and whether the system involves alternating cycles of high and low temperatures. For applications requiring high-temperature sterilization at 135°C, only FFKM or PTFE materials are suitable. For standard sterilization applications at 121°C, FKM, FFKM, or PTFE materials are all acceptable. For low-temperature conditions (≤ -20°C), prioritize FFKM or PTFE due to their excellent low-temperature resistance; EPDM is suitable only for moderate-to-low temperature applications ranging from -40°C to 120°C.
- Determine Sanitary Requirements: For applications involving sterile pharmaceuticals or biological agents, select materials characterized by a surface roughness of Ra ≤ 0.4 μm, an absence of sanitary dead zones (areas where residue can accumulate), and proven biocompatibility (e.g., FFKM, FKM, or PTFE); furthermore, batch-specific test reports must be provided. For general pharmaceutical applications (such as the transfer of oral medications), FKM or EPDM materials are sufficient, provided they still comply with GMP requirements. Determine Cleaning and Sterilization Methods: Clearly identify whether CIP (Clean-in-Place) and/or SIP (Sterilize-in-Place) are required, as well as the specific cleaning media (acidic or alkaline agents). Ensure that the sealing ring material is resistant to these cleaning and sterilization media-exhibiting no signs of aging or material leaching. For scenarios involving alkaline cleaning agents, EPDM or FFKM are the preferred choices; for scenarios involving acidic cleaning agents, FKM, FFKM, or PTFE are preferred.
(II) Selection Step 2: Match to Chemical Type (The Critical Factor)
- Single-Chemical Scenarios: Directly consult the "Chemical Compatibility Chart for Various Materials" to make a selection. For instance: for dilute acids, choose FKM, FFKM, or PTFE; for alkaline agents, choose EPDM, FFKM, or PTFE; for organic solvents, choose FKM, FFKM, or PTFE; for strong oxidizing agents, choose FFKM or PTFE; and for highly viscous agents, choose FKM or FFKM.
- Mixed-Chemical Scenarios (e.g., Acid + Organic Solvent; Alkali + Oxidizing Agent): FFKM is the preferred choice (offering comprehensive compatibility with no blind spots), followed by PTFE. The use of EPDM (which has poor resistance to organic solvents) and standard FKM (which has poor resistance to strong oxidizing agents and concentrated alkalis) is strictly prohibited to prevent material corrosion, which could lead to seal failure and chemical contamination.
- Special Chemical Scenarios: For biological agents, vaccines, and sterile injectables, FFKM is the preferred choice (offering superior biocompatibility and zero leaching), followed by PTFE. For scenarios involving concentrated acids or alkalis, only FFKM or PTFE are suitable options. For scenarios involving alternating cycles of high-viscosity fluids and sterilization, FKM or FFKM should be selected (due to their ease of cleaning and resistance to sterilization processes).
(III) Selection Step 3: Balance Cost and Performance (Avoid Waste)
- Standard Operating Conditions + Common Chemicals (e.g., oral medications, dilute acids, ethanol): Select FKM material. It offers the highest cost-performance ratio and fully satisfies both regulatory compliance and performance requirements; there is no need to blindly opt for FFKM, thereby helping to reduce procurement costs.
- Rigorous Operating Conditions + Special Chemicals (e.g., biological agents, concentrated acids/alkalis, 135°C sterilization): FFKM material is mandatory. Although the unit cost is higher, using FFKM prevents seal failure and chemical contamination, thereby mitigating long-term maintenance burdens and compliance risks. Furthermore, the material's extended service life can partially offset the initial procurement costs. Specific Alkaline Environments (e.g., conveying alkaline cleaning agents): Select EPDM material. Its cost is comparable to FKM, yet it offers superior resistance to alkaline substances, eliminating the need to opt for higher-end materials.
- High-Precision, Low-Friction Environments (e.g., high-end filling equipment): Select PTFE material. It offers a better cost-performance ratio than FFKM while satisfying requirements for sealing precision and chemical resistance. However, it must be paired with a spring support mechanism to compensate for its inherent lack of elasticity.
(IV) Key Considerations for Material Selection: Pitfalls to Avoid (Must Read)
- Strictly Prohibited: Substituting pharmaceutical-grade seals with standard industrial-grade or food-grade seals. Even if their appearance and dimensions match, standard seals lack pharmaceutical-grade certification; they are prone to leaching harmful substances and lack resistance to corrosive pharmaceutical agents. This can lead to product contamination, violations of GMP requirements, regulatory penalties, and potentially trigger safety incidents.
- Do Not Blindly Pursue "High-End Materials": While FFKM offers the highest performance capabilities, its cost is extremely high. If the specific operating conditions and pharmaceutical agents involved do not necessitate such extreme performance (e.g., conveying standard oral medications), FKM is a sufficient choice, thereby avoiding unnecessary procurement costs. Additionally, PTFE materials require a spring support mechanism to ensure effective sealing performance; therefore, careful attention must be paid to selecting the appropriate accompanying components.
- Verify Certifications and Test Reports: When purchasing, you must request pharmaceutical-grade certifications (e.g., FDA, GB 10993, USP Class VI) and batch-specific test reports from the supplier. Pay particular attention to key metrics such as extractables, heavy metals, and biocompatibility to avoid purchasing "pseudo-pharmaceutical-grade" seals (i.e., those merely labeled as "pharmaceutical-grade" but lacking actual certifications and test reports). Furthermore, verify that the manufacturing environment for the seals meets cleanroom standards and request supporting documentation regarding the production environment's compliance.
- Consider Service Life and Maintenance Costs: FFKM offers the longest service life (12-24 months), followed by FKM and PTFE (6-12 months), while EPDM has the shortest lifespan (3-6 months). When selecting a material, align your choice with the equipment's scheduled maintenance cycle to ensure the seal's lifespan is compatible. This strategy helps avoid frequent replacements, thereby minimizing maintenance costs and reducing losses associated with equipment downtime.

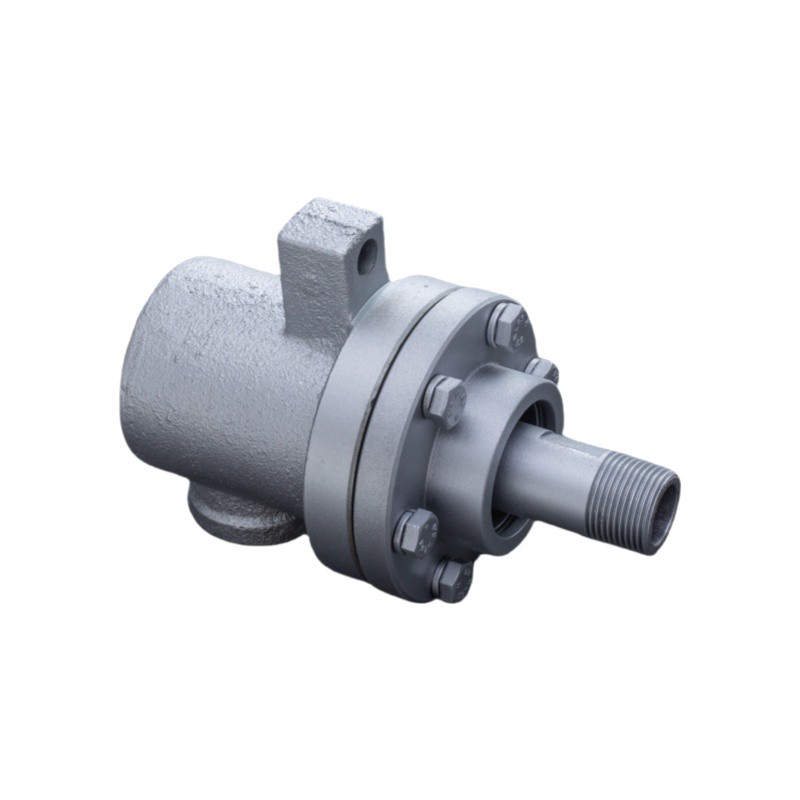

Adaptation to Rotary Joint Structure
Rotary joints of different structural configurations-such as single-flow, dual-flow, or three-way types-impose varying requirements regarding the dimensional precision and structural design of the sealing ring. Consequently, during the selection process, it is essential to coordinate the choice of sealing ring with the specific structural model of the rotary joint. This ensures precise dimensions, facilitates convenient installation, and eliminates any "dead spots" during mounting, thereby preventing seal failure caused by improper installation. Furthermore, attention must be paid to material compatibility between the sealing ring and the contact components of the rotary joint to prevent mutual corrosion.
